Crown Molding Miter and Bevel Angles Calculator for Compound Miter Saw Settings

The Crown Molding Miter and Bevel Angles calculator will print out the Miter Angle and Saw Blade Bevel Angles for corner angles 0-360 and spring angles 0-90.

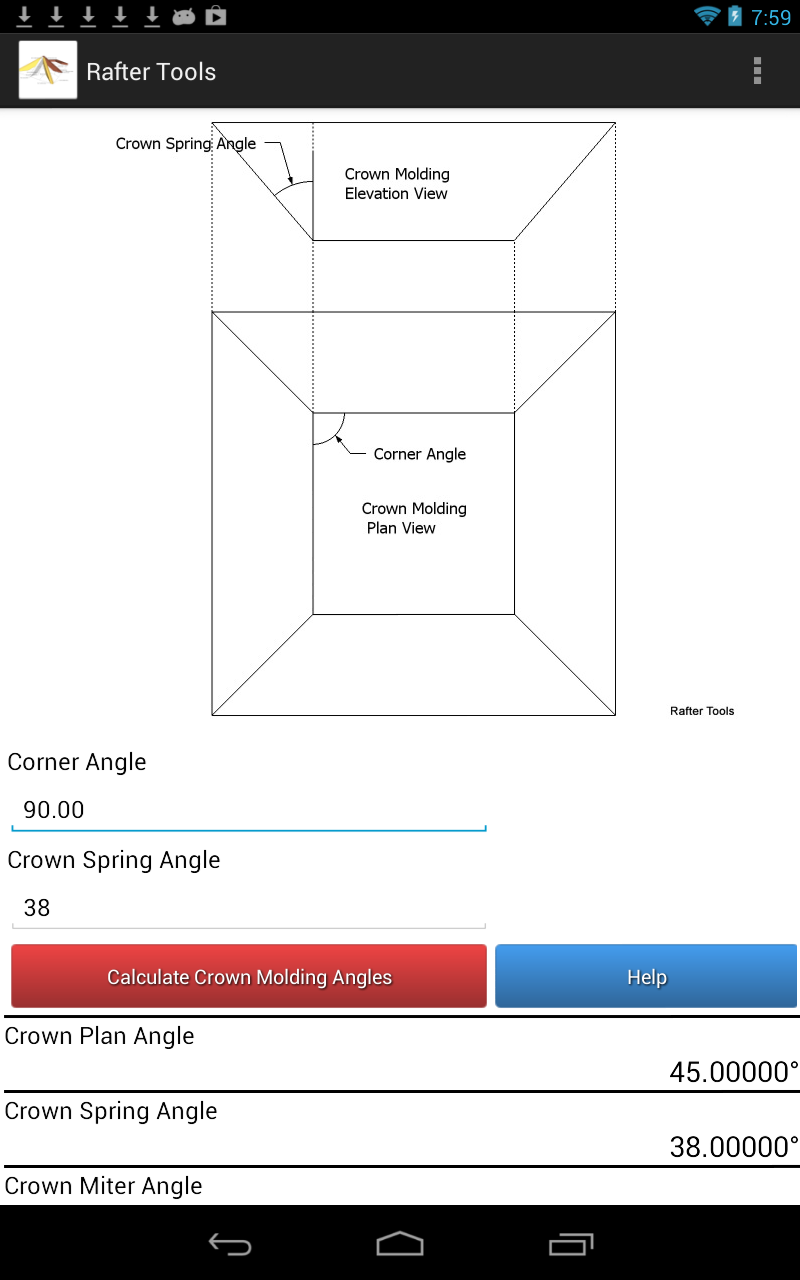

Input variables

  1. Corner Angle
  2. Crown Spring Angle

Corner Angle
This is the corner angle of the building. Most crown corners are at 90°. For Octagons and 45° BayWindows use an Corner Angle of 135°. For Hexagons use an Corner Angle of 120°.

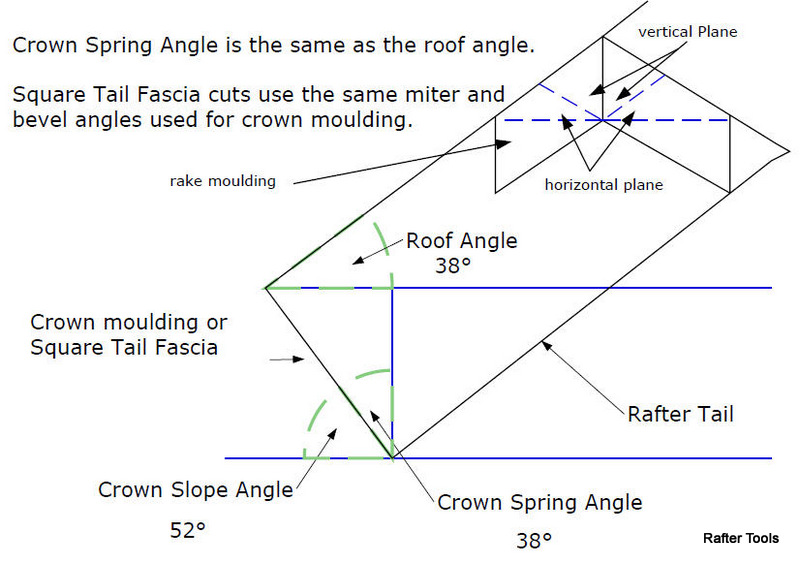

Spring Angle
Degrees input —— use any crown spring angle in degrees like 33.69007°

Calculated Results for the Crown Molding Angles.

  1. Crown Plan Angle
  2. Crown Spring Angle
  3. Crown Miter Angle
  4. Crown Saw Blade Bevel Angle
  5. Crown Miter Angle for cutting Crown material on Edge
  6. Crown Saw Blade Bevel Angle for cutting Crown material on Edge

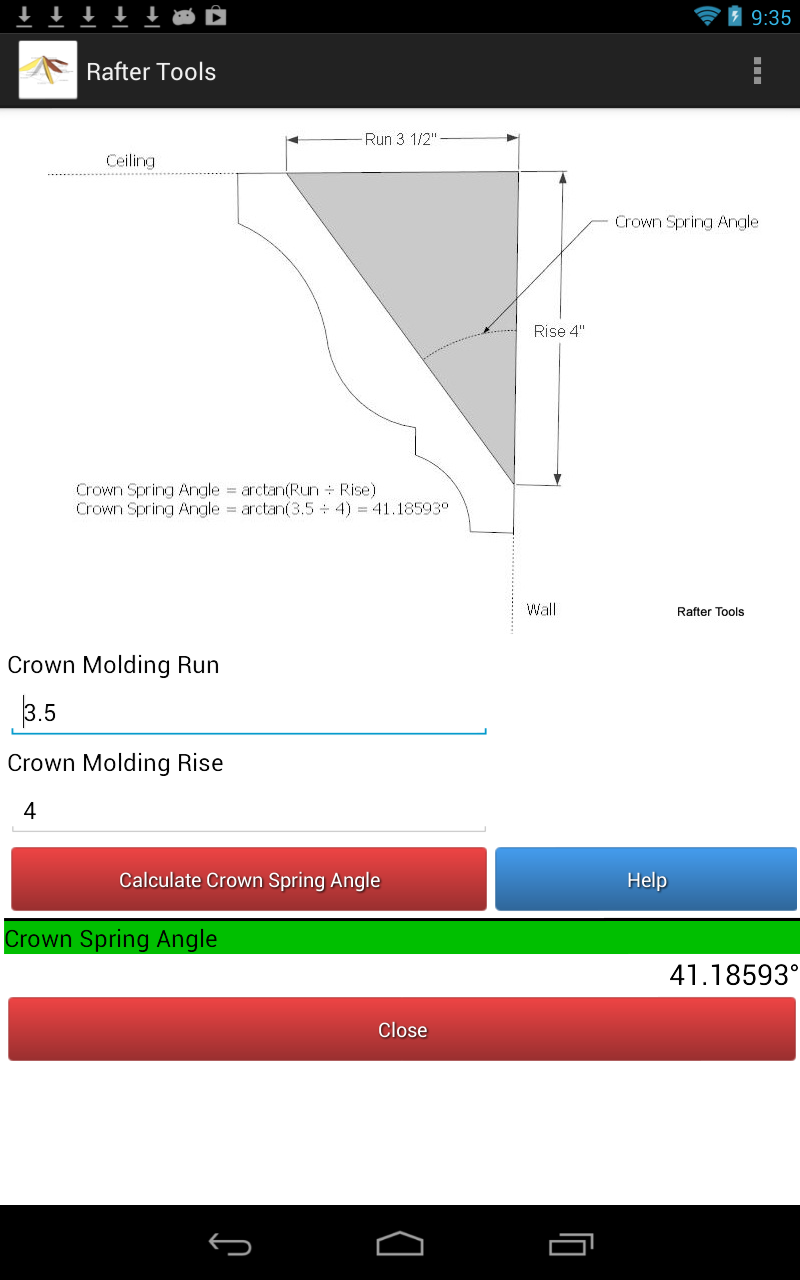

Calculate Spring Angle.
Use the Calculate Spring Angle Button to enter the rise and run of the crown molding to calculate the spring angle for the crown molding your using. After you've pressed the Calculate Spring Angle Button you can press the green Crown Spring Angle line and it will use the new Crown Spring Angle on the main Calculate Spring Angles page.

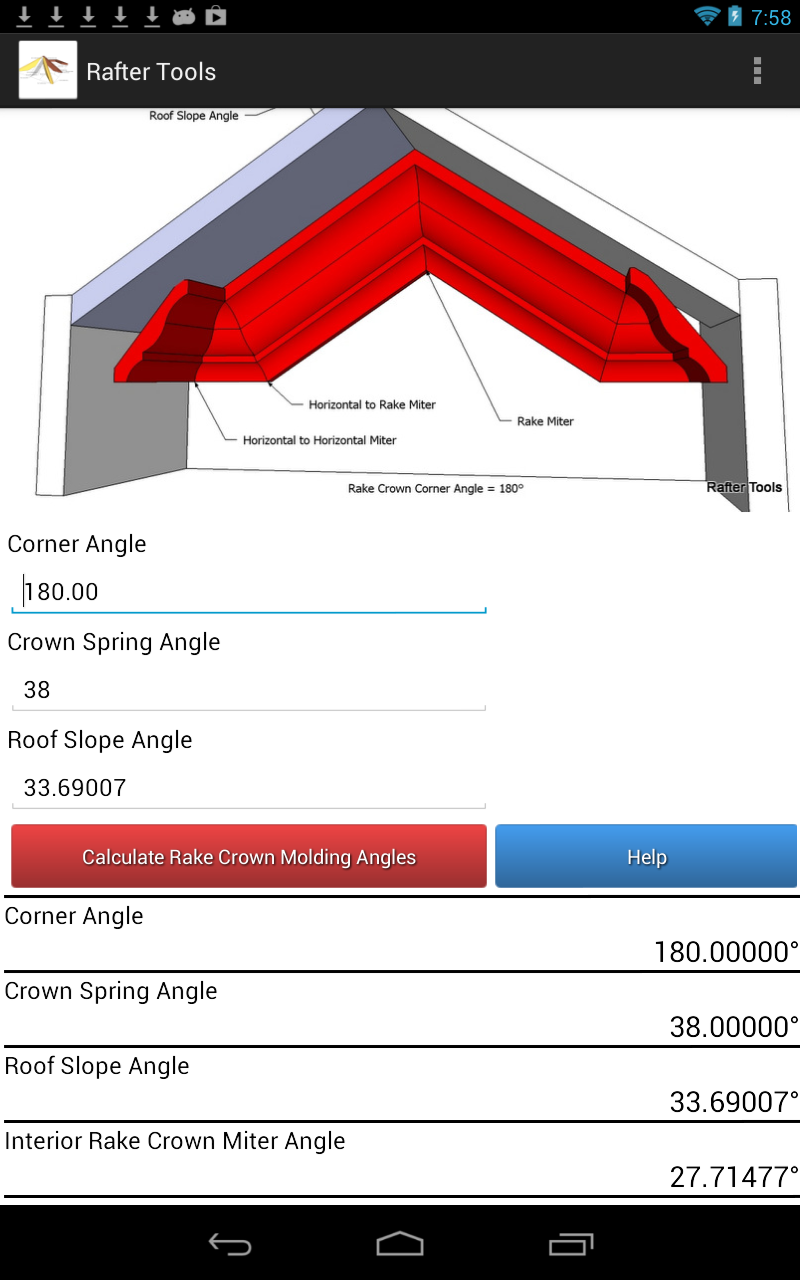

Rake Crown Miter Angle and Saw Blade Bevel Angles Calculator.

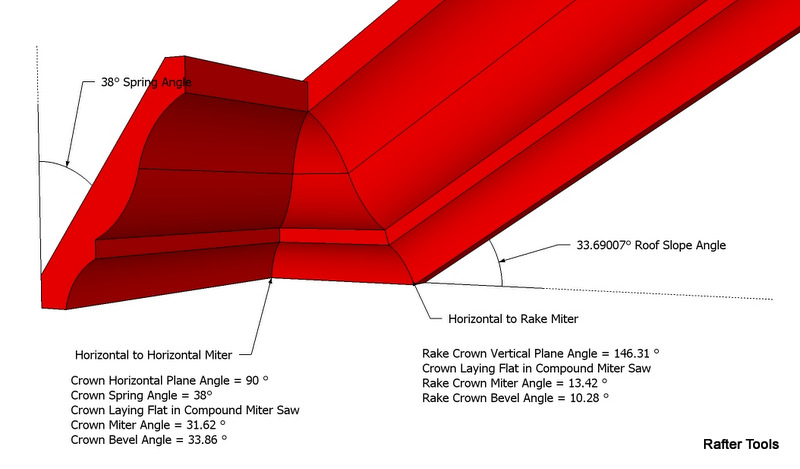

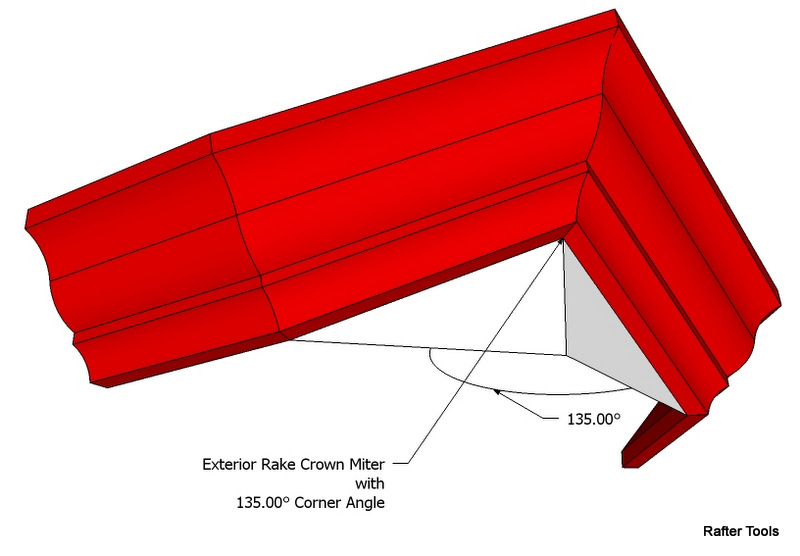

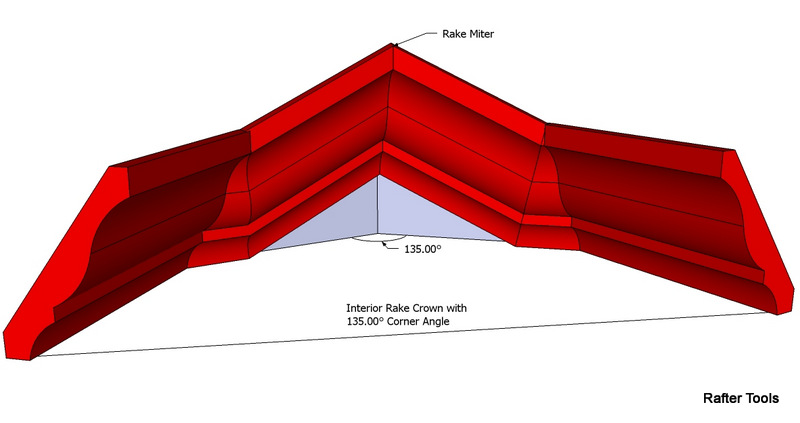

Use this Calculator for rake crown molding. It will calculate the Rake Crown Miter Angle and Saw Blade Bevel Angles for interior Cathedral Ceilings and exterior gable rake crown for corner angles from 90-180 and spring angles from 0-90. It will also calculate the horizontal to rake Pie-Shaped Transition piece miter and bevel angles for interior Cathedral Ceilings with a wall corner angle of 180.

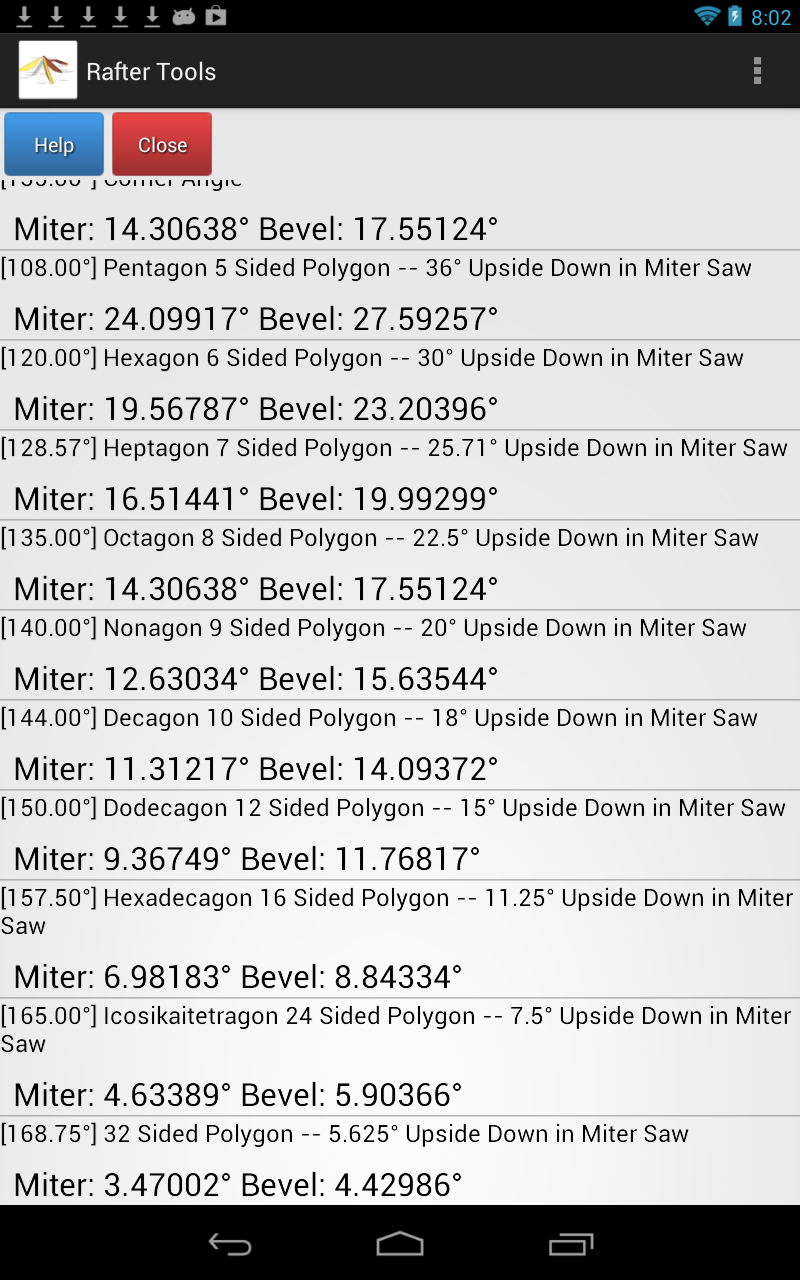

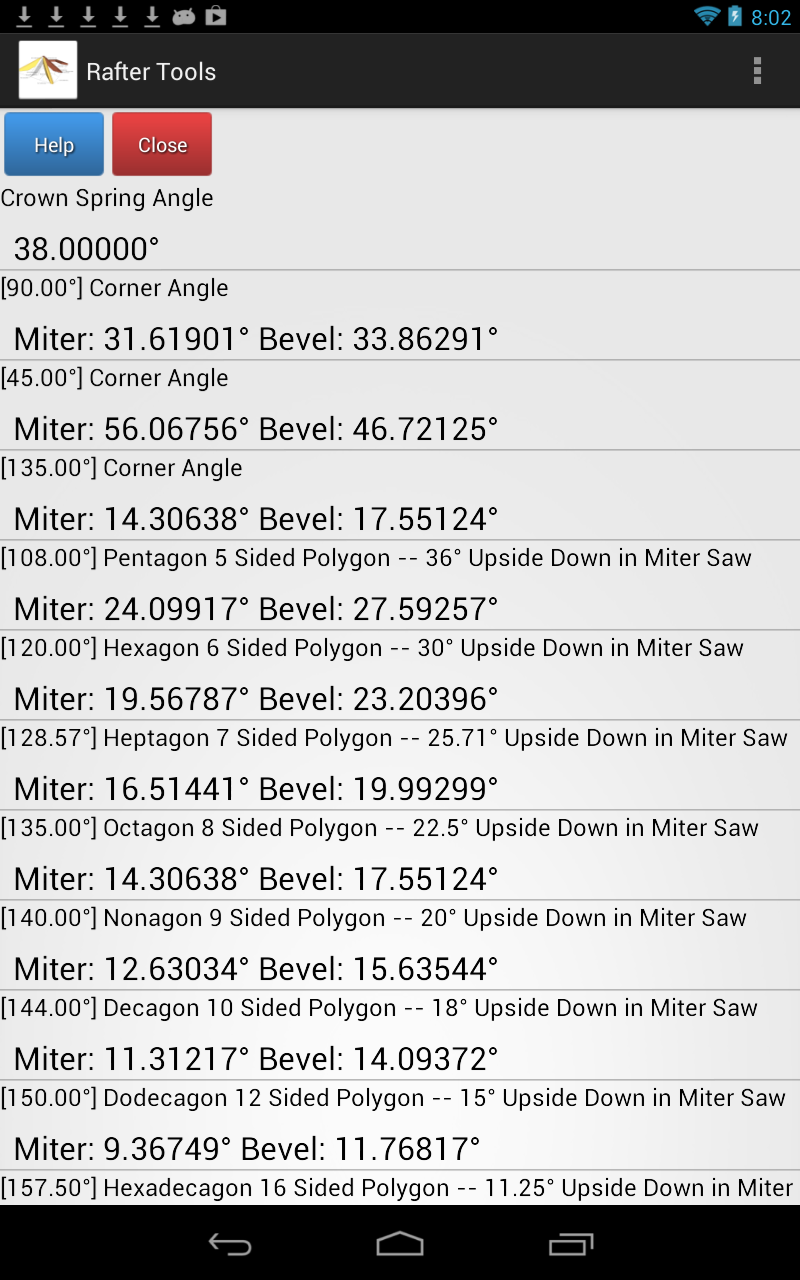

Polygon Crown Miter Angle and Saw Blade Bevel Angles Calculator.

Use this Calculator for polygon crown molding. It will calculate the Crown Miter Angle and Saw Blade Bevel Angles for interior polygon crown molding angles.

  1. [108] Pentagon 5 Sided Polygon -- 35° Upside Down in Miter Saw
  2. [120] Hexagon 6 Sided Polygon -- 30° Upside Down in Miter Saw
  3. [128.57] Heptagon 7 Sided Polygon -- 25.71° Upside Down in Miter Saw
  4. [128.57] Heptagon 7 Sided Polygon -- 25.71° Upside Down in Miter Saw
  5. [135] Octagon 8 Sided Polygon -- 22.5° Upside Down in Miter Saw
  6. [140] Nonagon 9 Sided Polygon -- 20° Upside Down in Miter Saw
  7. [144] Decagon 10 Sided Polygon -- 18° Upside Down in Miter Saw
  8. [150] Dodecagon 12 Sided Polygon -- 15° Upside Down in Miter Saw
  9. [157.5] Hexdecagon 16 Sided Polygon -- 11.25° Upside Down in Miter Saw
  10. [165] Icosikaitetragon 24 Sided Polygon -- 7.5° Upside Down in Miter Saw
  11. [168.75] 32 Sided Polygon -- 5.625° Upside Down in Miter Saw

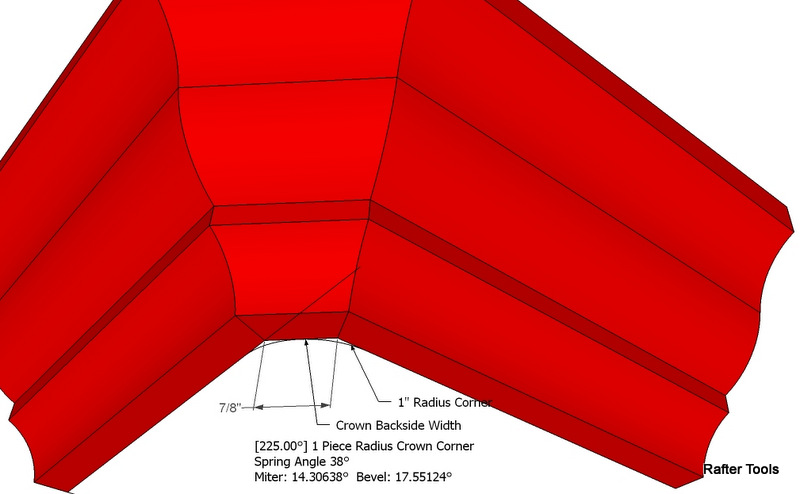

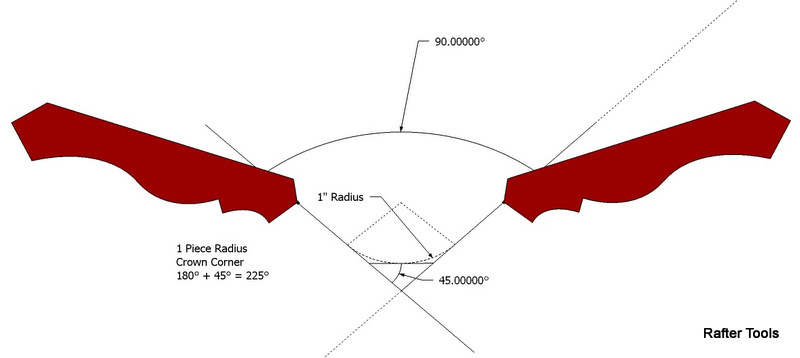

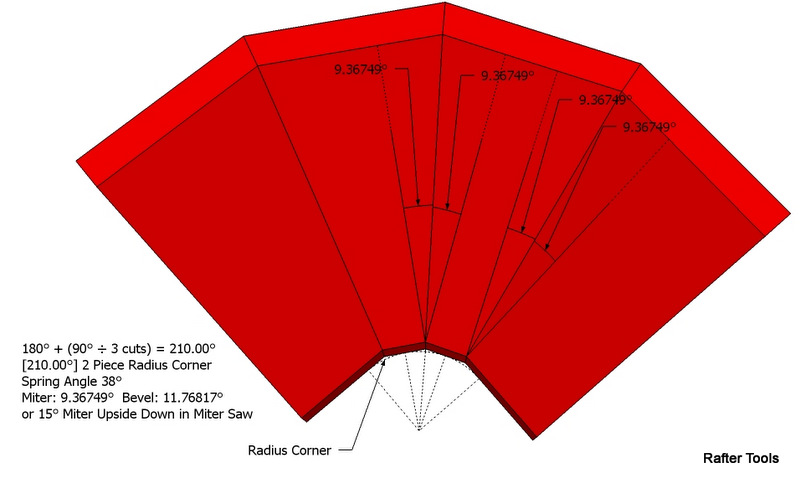

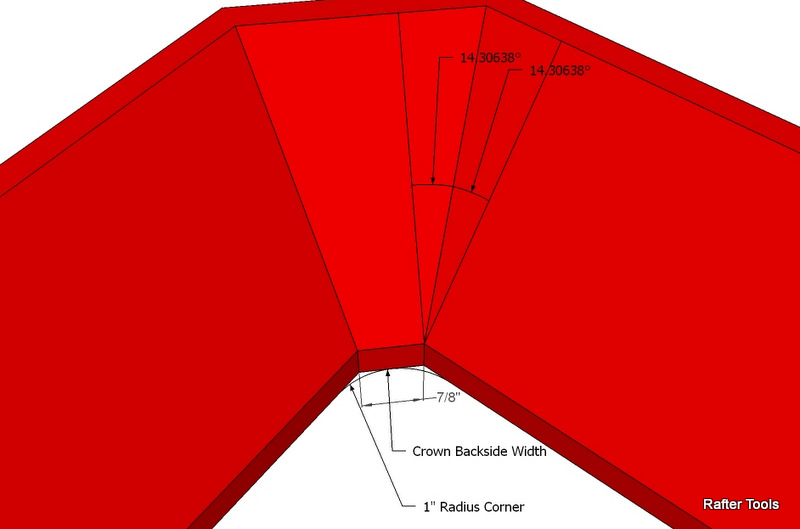

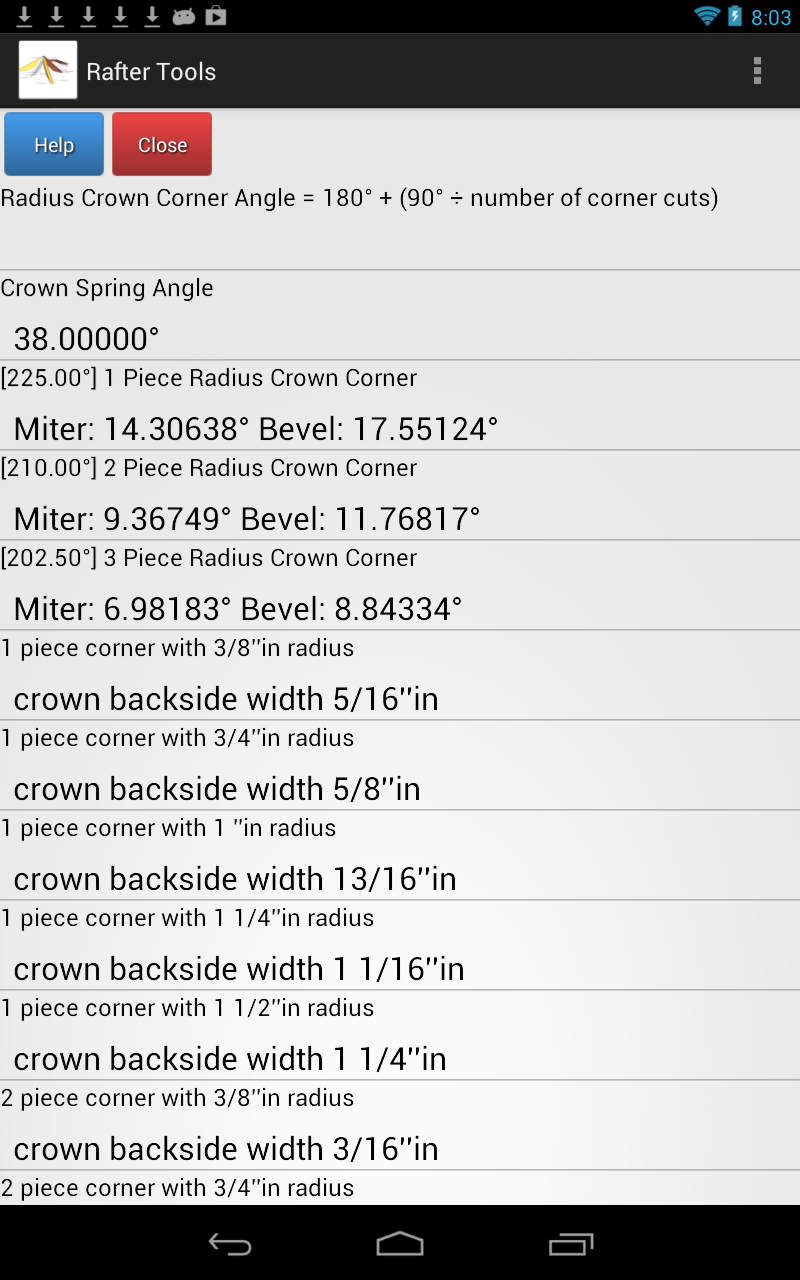

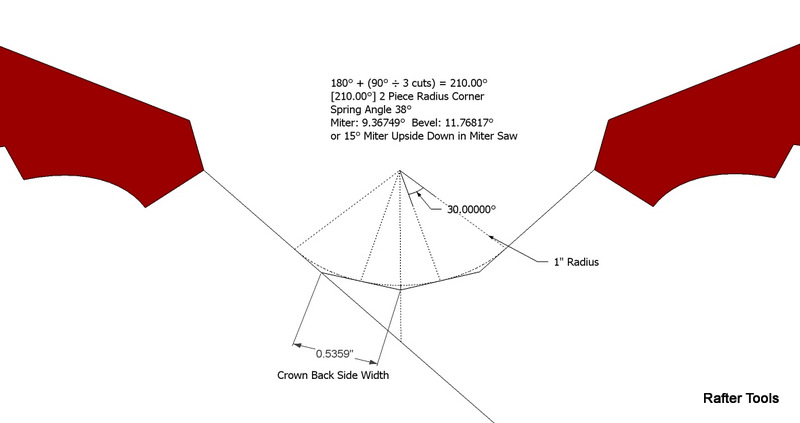

Radius Crown Miter Angle and Saw Blade Bevel Angles Calculator.

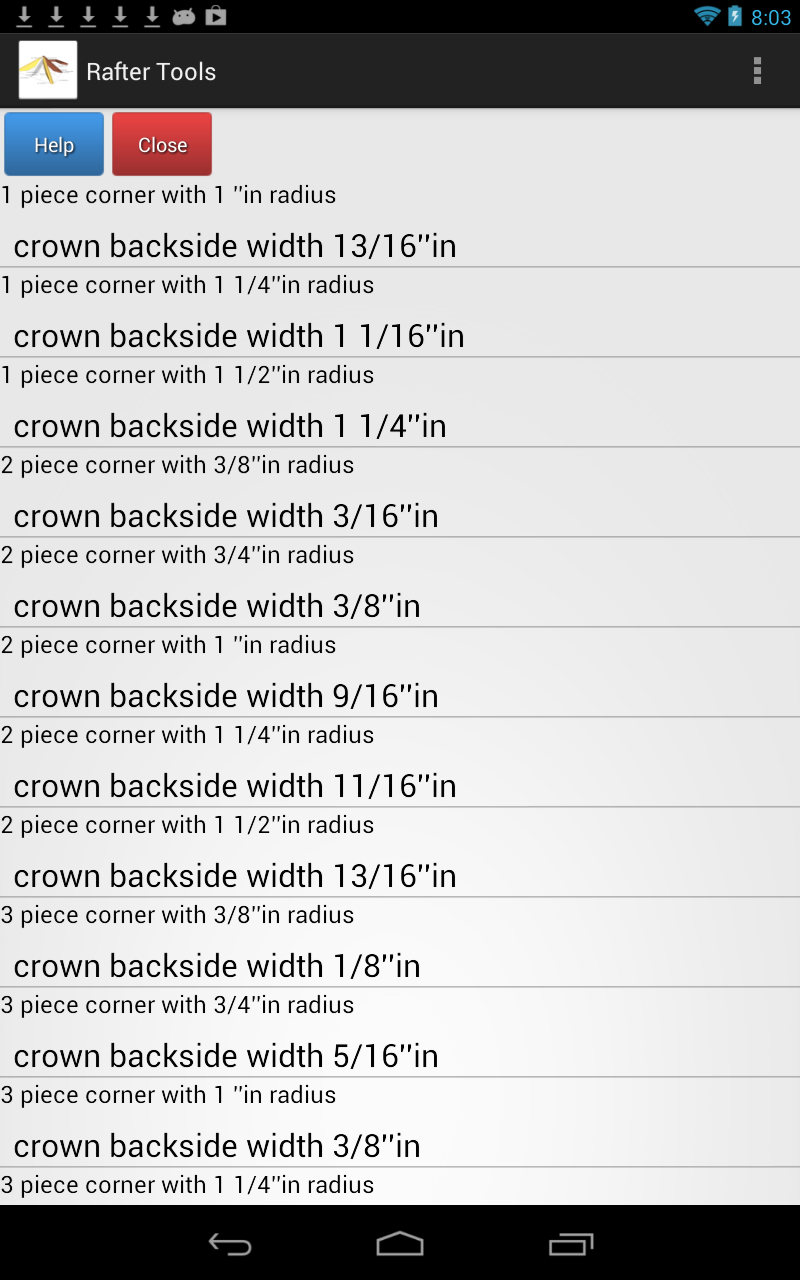

Use this Calculator for bullnose radius crown molding. It will calculate the Crown Miter Angle and Saw Blade Bevel Angles for interior bullnose radius crown moling angles. It will also calculate the crown molding width for 1, 2 and 3 piece radius crown molding corners with 3/8", 3/4", 1", 1 1/4" and 1 1/2" bullnose radius.

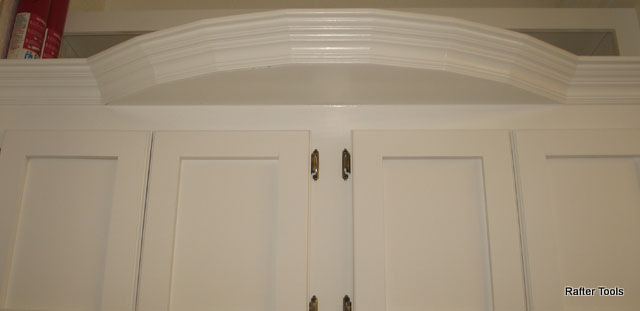

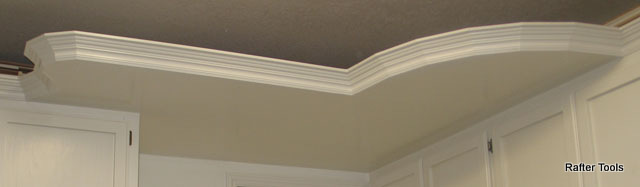

Polygon Crown Miter Angle and Saw Blade Bevel Angles examples.

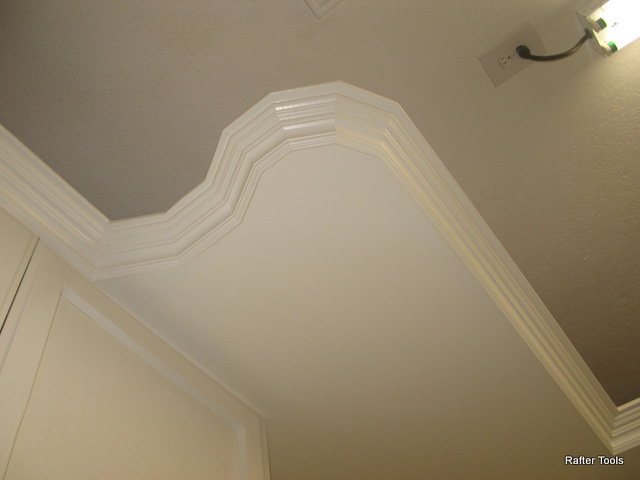

12 sided polygon crown molding

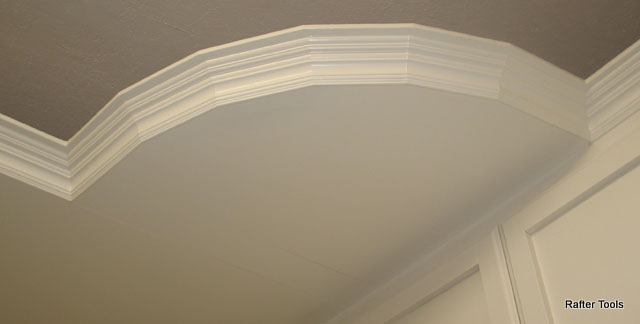

24 sided polygon crown molding

32 side polygon crown molding

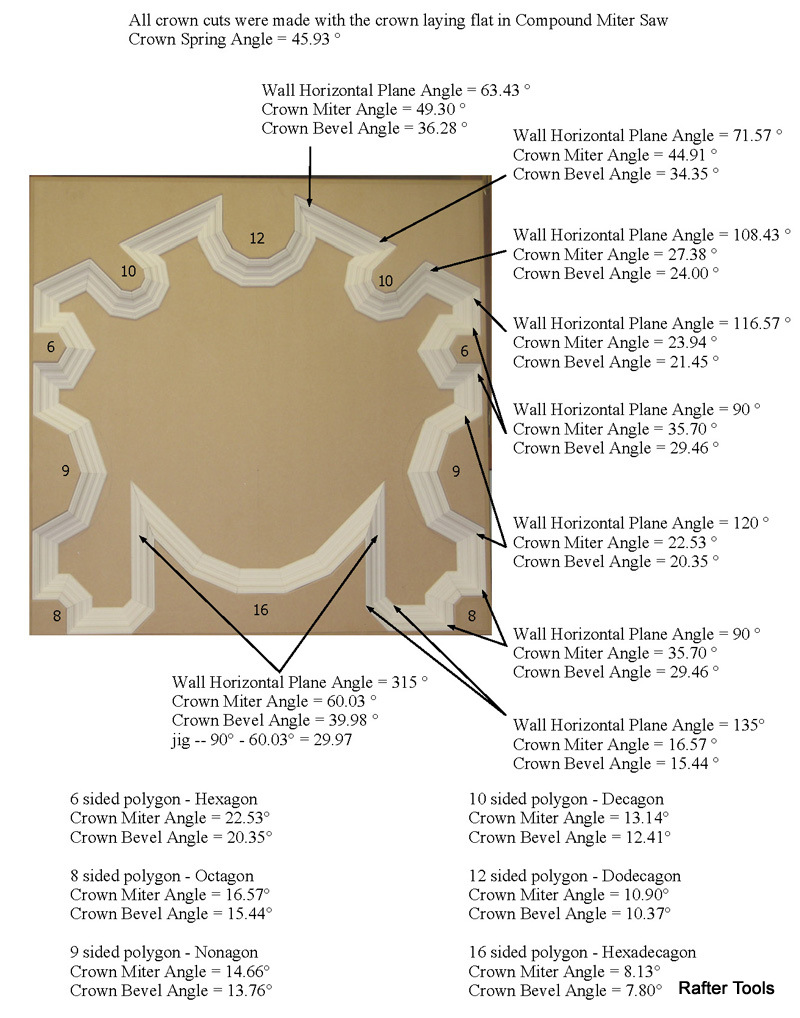

12 & 16 sided polygon crown molding

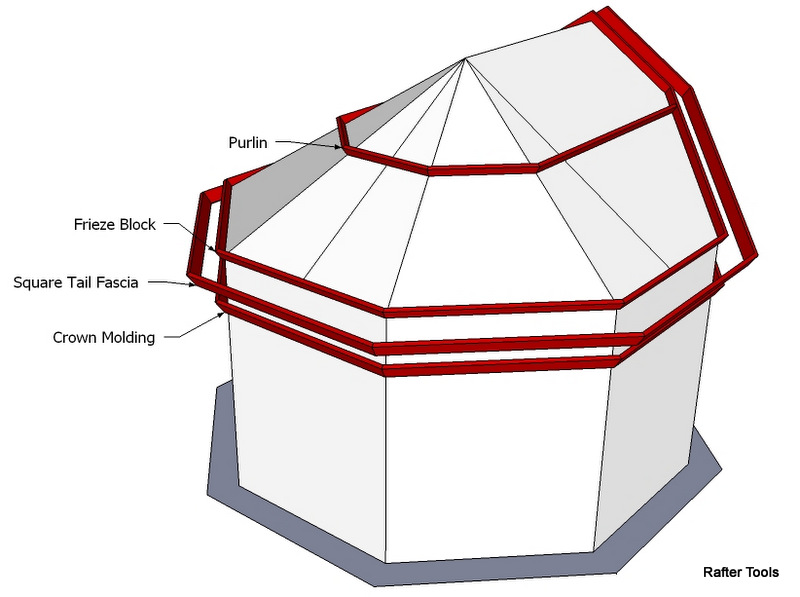

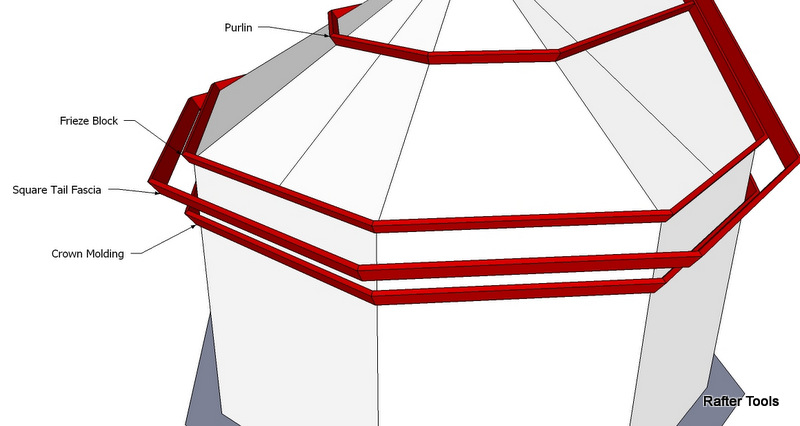

Compound Miter Angle and Saw Blade Bevel Angles are the same for crown molding, purlins, frieze blocks and square tail fascia. All of these use the same compound miter angle and bevel angles, because all of the cuts are made perpendicular to the the roof surface.

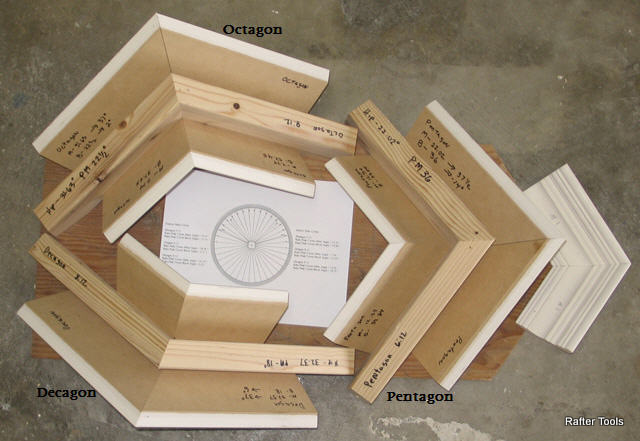

Polygon Crown Molding Miter Angles and Bevel Angles Example
